Name: The Klimbo Stair - K03
Brand: Klimbo
SKU: K03
Availability: InStock

The gap in every public restroom

A standard sink is built for adults. Between 2 and 8, a child cannot reach it alone.

Venues solve it three ways today, and each one creates a new problem.

1
A loose plastic stool. It gets kicked across the floor, sits in the path of wheelchair users and strollers, walks out the door, and becomes a trip hazard on a wet floor.
2
A lowered sink. Plumbing work, a renovation permit, and one fixture that no longer serves adults.
3
A parent lifting the child. The everyday default. It works for one child, once, if a parent is there.

Klimbo is the fourth option: a step that is part of the building. Anchored to the floor, deployed with a foot, retracted by itself, and out of everyone else's way.

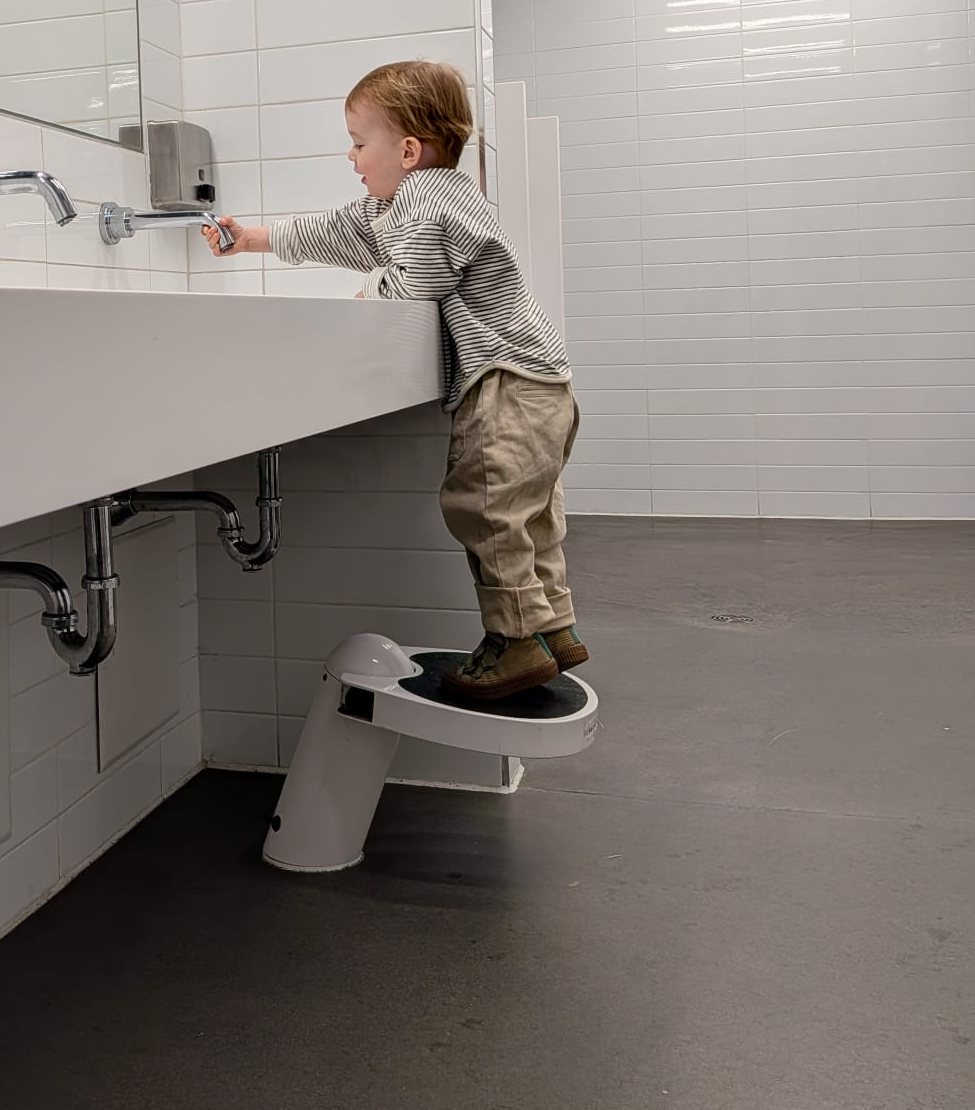

A toddler standing on a Klimbo step stool reaching the faucet of an adult-height sink — **Reach, without help.** The step lifts a child about 11 in (279 mm), enough to reach a standard counter and faucet on their own.

How it works

Three moves. No hands, no power, no loose parts.

1DEPLOY

The child pulls the step out with one foot

The step swings down from under the counter. No handles, no hand contact, nothing to learn.

2STEP UP

They climb on and wash their hands

An anti slip tread made from recycled tires, rated for 815 lb, so an adult can stand on it too.

3RETRACT

The step folds back by itself

As soon as they step off, the step returns under the counter. The aisle stays clear for the next person, a mop, or a wheelchair.

Montréal-Trudeau airport, 20 s. Watch on YouTube

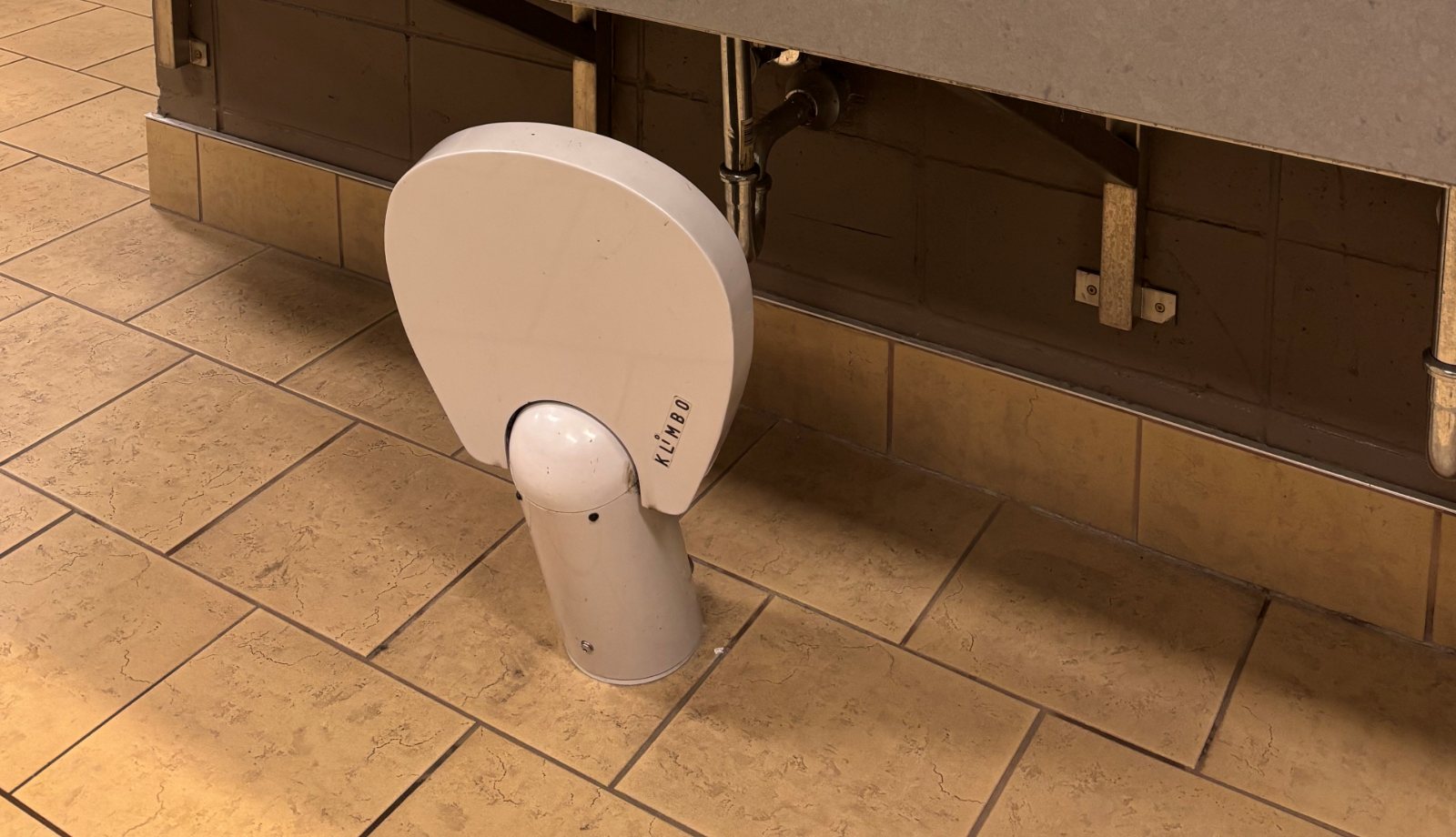

A Klimbo K01 in the retracted position under a restroom counter

Retracted. This is what the restroom looks like 99 percent of the time: the step tucked under the counter, the floor clear.

The two anchored models

K01 for flagship restrooms. K02 for rolling out across many.

Same job, same 815 lb rating, same colors. They differ in material, retraction mechanism, anchoring, and price point.

MODEL K01

The Klimbo

Premium aluminum

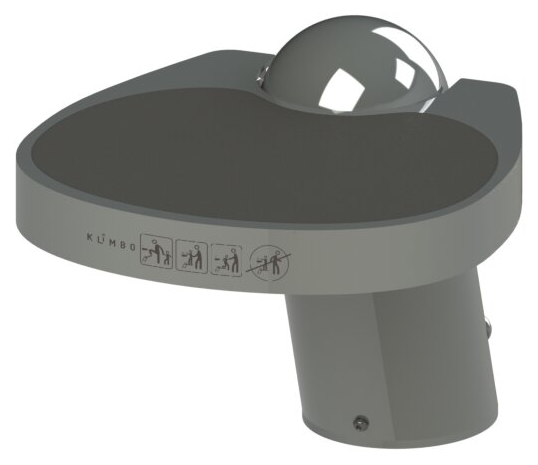

Klimbo K01 retractable step stool, rendering in standard grey

The original, chosen by Montréal-Trudeau in 2017. Made of aluminum, so it never rusts, with a single floor anchor and a five year warranty that covers the retraction mechanism.

Self retracting through an internal mechanism, not a spring on the outside.
One anchor point in the concrete slab. Fewer holes, faster service.
Rust proof aluminum body, stainless hardware. 316 stainless available for pool and chlorine environments.
Sculpted form that sits well in a designed space: airports, museums, hotels, heritage buildings.

Technical specifications, K01
Height, retracted	24 in (610 mm)
Width	14.1 in (358 mm)
Base	5.6 in (142 mm) diameter
Step height, lowered	11 in (279 mm)
Load capacity	815 lb (370 kg), manufacturer rating
Exterior	Aluminum T6061, Axalta polyester powder coat, embedded anti slip tread made from recycled tires
Load bearing parts	Tempered steel
Hardware	Blackened 18-8 stainless steel; 316 stainless by special order
Anchoring	Concrete floor slab, single anchor point, three steel masonry anchors supplied
Unit weight	20 lb (9 kg); 22 lb (10 kg) packaged
Shipping box	26 x 15 x 7 in (710 x 380 x 180 mm)
Signage	Pictograms on the step edge; 4 x 6.4 in sign panel supplied in white, black or brushed metal, for eye level
Warranty	5 years, manufacturing defects and retraction mechanism

K01 spec sheet (PDF) Installation guide CAD and Revit files on request

MODEL K02

The Klimbo Step

Volume steel model

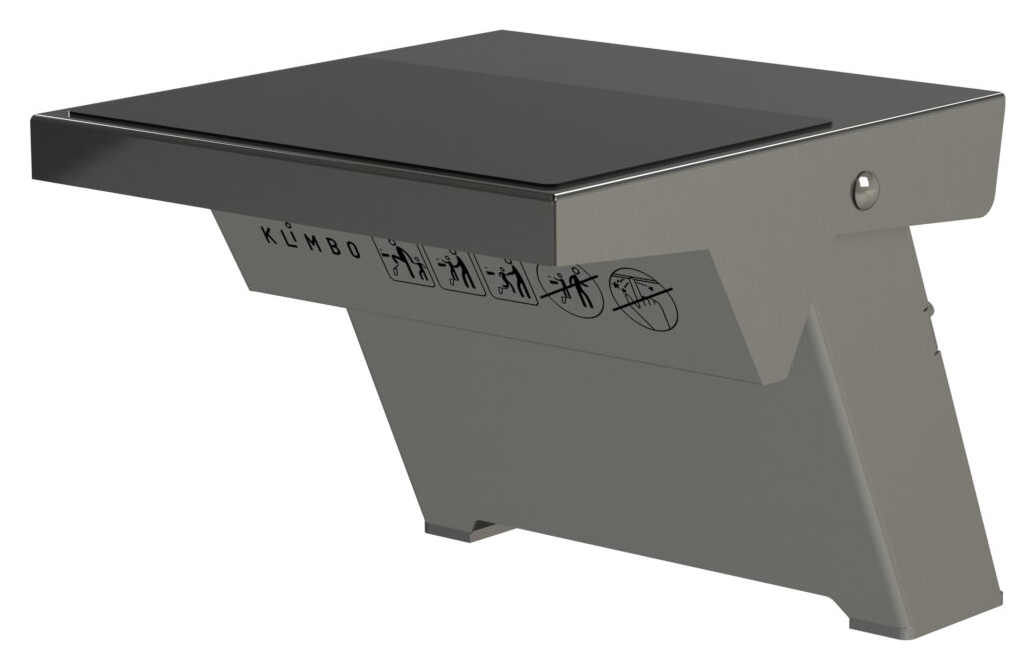

Klimbo K02 retractable step stool, rendering in standard grey

Built for equipping many restrooms at once and for upgrading existing ones. Powder coated steel, a counterweight that returns the step by gravity, and roughly half the unit cost of the K01.

Counterweight retraction. Gravity brings the step back. No internal mechanism to service.
Two anchor points with a drilling template supplied. A conventional install for any facilities crew.
Steel 1018 with an epoxy primer and Axalta polyester powder coat formulated for steel.
Priced for rollouts across chains, districts, and municipal portfolios.

Technical specifications, K02
Height, retracted	19 in (483 mm)
Width	13.75 in (334 mm)
Step height, lowered	11 in (279 mm); step 1.5 in (38 mm) thick
Load capacity	815 lb (370 kg), manufacturer rating
Components	Steel 1018, adhesive anti slip tread made from recycled tires
Finish	Epoxy primer and Axalta polyester thermosetting powder coat for steel
Anchoring	Concrete floor slab, two anchor points, four 3/8 x 3 3/4 in anchors with drilling template
Unit weight	22 lb (10 kg); 23.5 lb (10.7 kg) packaged
Shipping box	22 x 16 x 8 in (560 x 405 x 203 mm)
Signage	Clear logo decal under the step; 4 x 6.4 in sign for eye level
Warranty	3 years, manufacturing defects

K02 spec sheet (PDF) Installation guide CAD and Revit files on request

At a glance	K01 The Klimbo	K02 The Klimbo Step
Best for	Flagship and high traffic restrooms, designed spaces, pools and wet areas	Multi site rollouts, retrofits, budget driven projects
Body	Aluminum, rust proof	Steel, primed and powder coated
Retraction	Internal mechanism	Counterweight, by gravity
Floor anchoring	1 anchor point, 3 anchors supplied	2 anchor points, 4 anchors and drilling template supplied
Load capacity	815 lb (370 kg)	815 lb (370 kg)
Step height, lowered	11 in (279 mm)	11 in (279 mm)
Unit weight	20 lb (9 kg)	22 lb (10 kg)
Warranty	5 years, incl. retraction mechanism	3 years
Colors	Standard RAL 7047 Telegrey. 190 RAL colors and Axalta metallic finishes on order. Custom branding available.
Price point	Premium	About half the unit cost of the K01

Where it fits

Any restroom that families walk into.

Municipal buildings and libraries

City halls, community centers, public libraries, parks and recreation facilities.

Sports and entertainment venues

Stadiums, arenas, aquatic centers, ski resorts, movie theaters.

Restaurants and quick service

Family dining rooms and chains where a clean, kid ready restroom is part of the brand.

Travel centers and gas stations

Rest stops and travel plazas where families stop several times a day.

Airports and transit

Terminals, train stations, bus terminals. Five international airports run Klimbo today.

Museums, zoos, attractions

Science centers, aquariums, amusement parks, cultural venues.

Schools and childcare

Elementary schools, daycares, after school programs.

Healthcare and worship

Pediatric clinics, hospitals, churches and community halls.

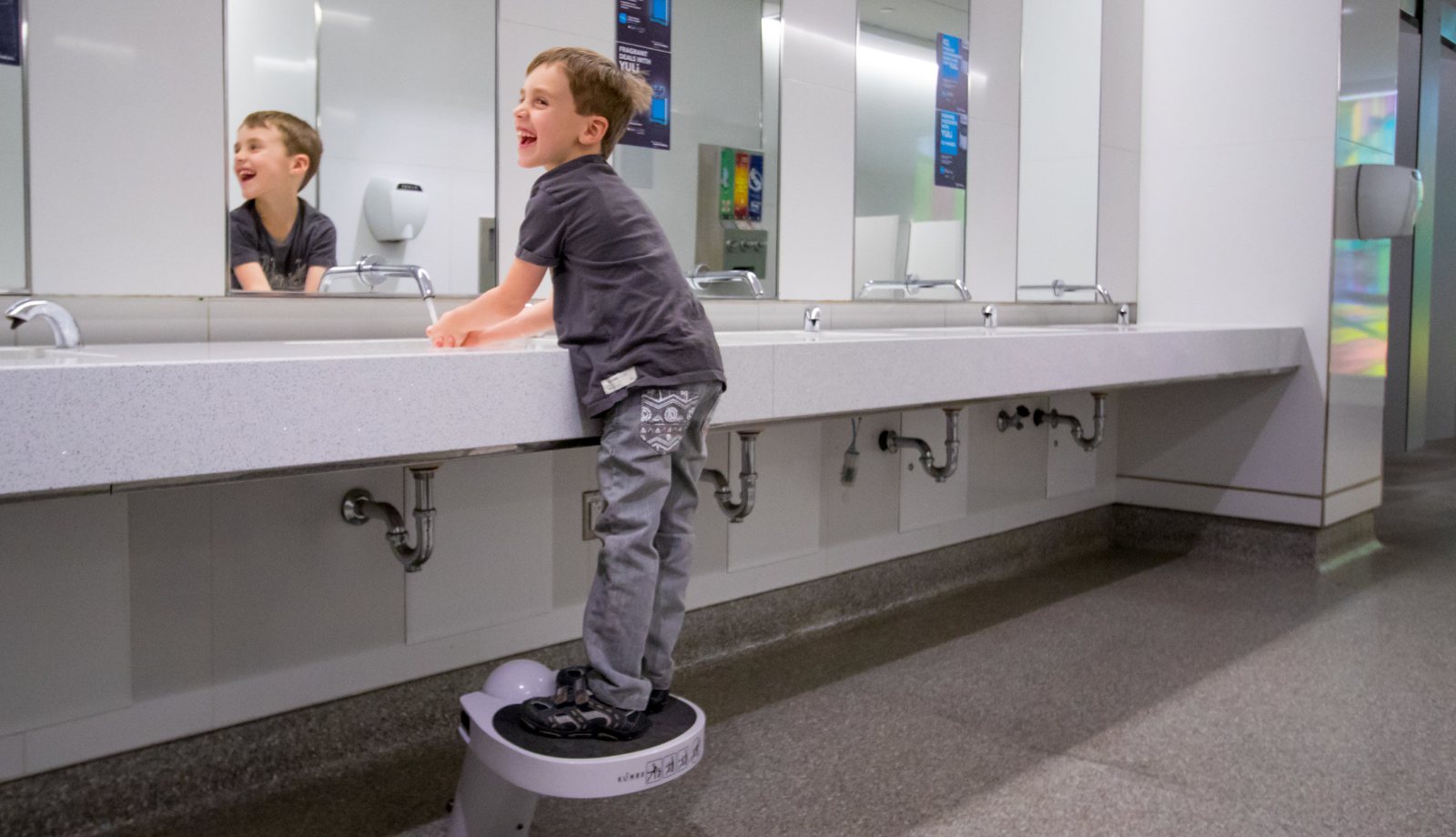

A boy laughing on a Klimbo K01 at a Montréal-Trudeau airport restroom sink — Montréal-Trudeau International Airport, K01. The airport ordered more than 80 units after the first one.

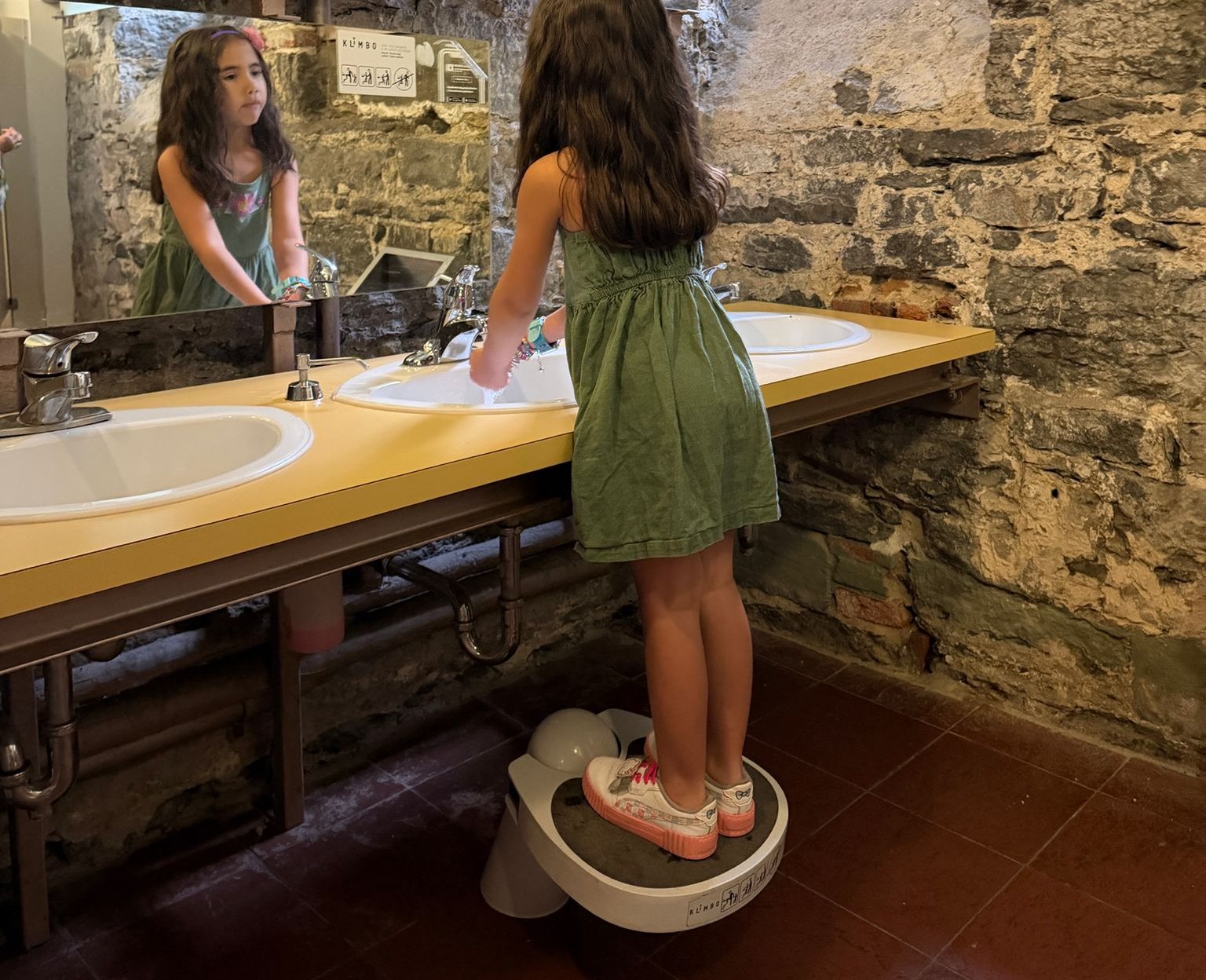

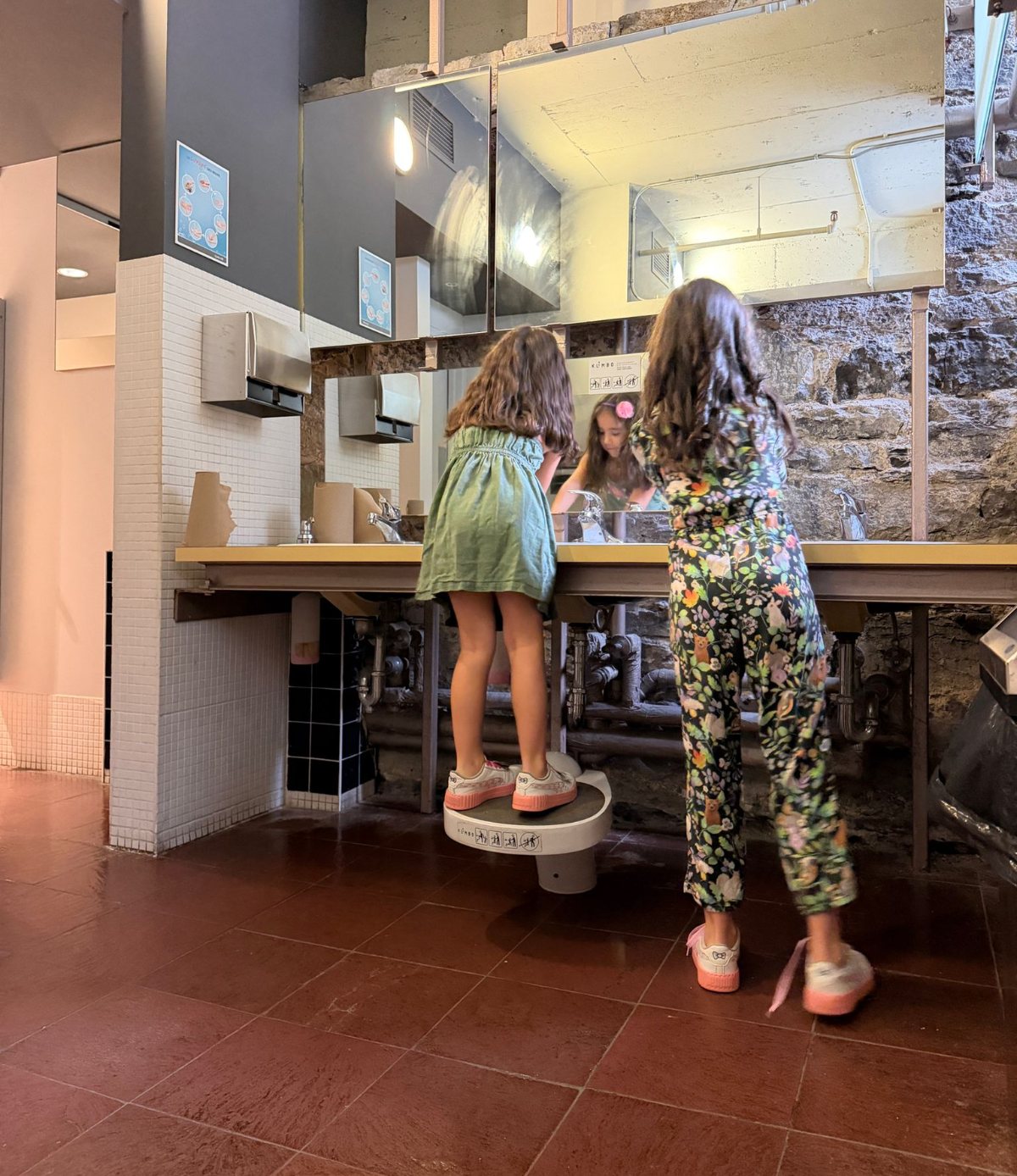

Two girls at a public restroom counter, one standing on a Klimbo K01 — Heritage building retrofit. Stone wall, existing counter and plumbing untouched.

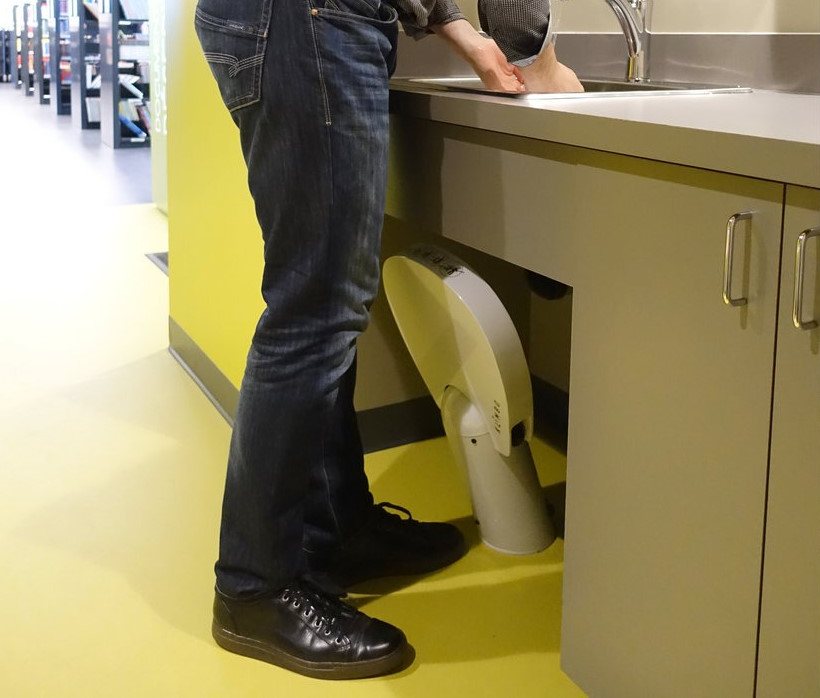

An adult washing hands at a library sink with a retracted Klimbo step beside their feet — Public library. Retracted, the step stays out of an adult's way at the same sink.

What operators say

From a municipality in Illinois to a ski resort in Colorado.

I continue to receive positive comments from parents and teachers!
Naperville, IllinoisMunicipality

We are proud to provide really clean washrooms for the whole family, at every Irving location with Klimbo self retracting step!
Irving OilTravel stations

The moment I can add some to my installations I will definitely do so!
Baptist Church, HoustonPlace of worship

They are a serious upgrade from loose step stools under a sink for toddlers.
Aspen Snowmass, ColoradoSki resort

Installation and finish

Anchored to the slab. Everything else stays as it is.

A drill, anchors, and a few minutes per unit

Both models anchor into the concrete floor slab in front of the sink. No plumbing changes, no counter modification, no wall work, and no electrical. That is what makes Klimbo a retrofit product as much as a new build one.

K01: single anchor point, three steel masonry anchors supplied.
K02: two anchor points, four 3/8 x 3 3/4 in anchors and a drilling template supplied.
Installation guides for both models are published on klimbo.co.
Cleaning: the step retracts off the floor, so mopping goes right under it. No hinges or springs exposed on the floor side.

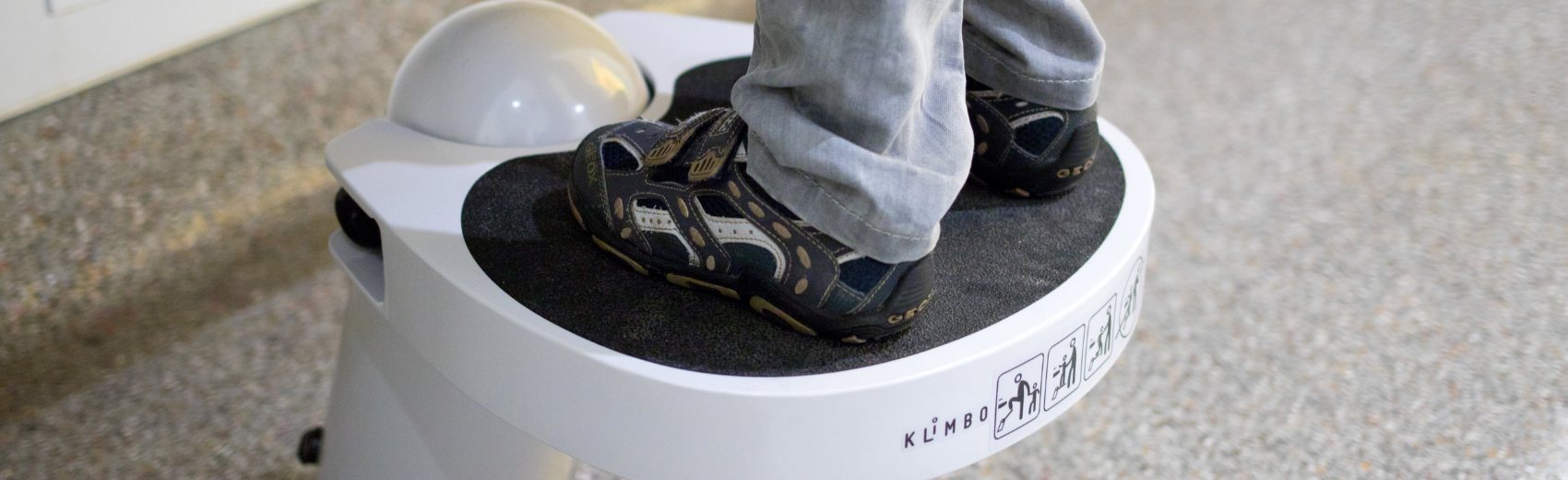

Close up of a child's shoes on the anti slip tread of a Klimbo step

Your color, your signage, your brand

Standard units ship in RAL 7047 Telegrey. Both models can be ordered in any of 190 RAL classic colors or in Axalta metallic finishes, and the body can carry your logo or a message to your visitors. Every unit below left the Montréal shop for a customer.

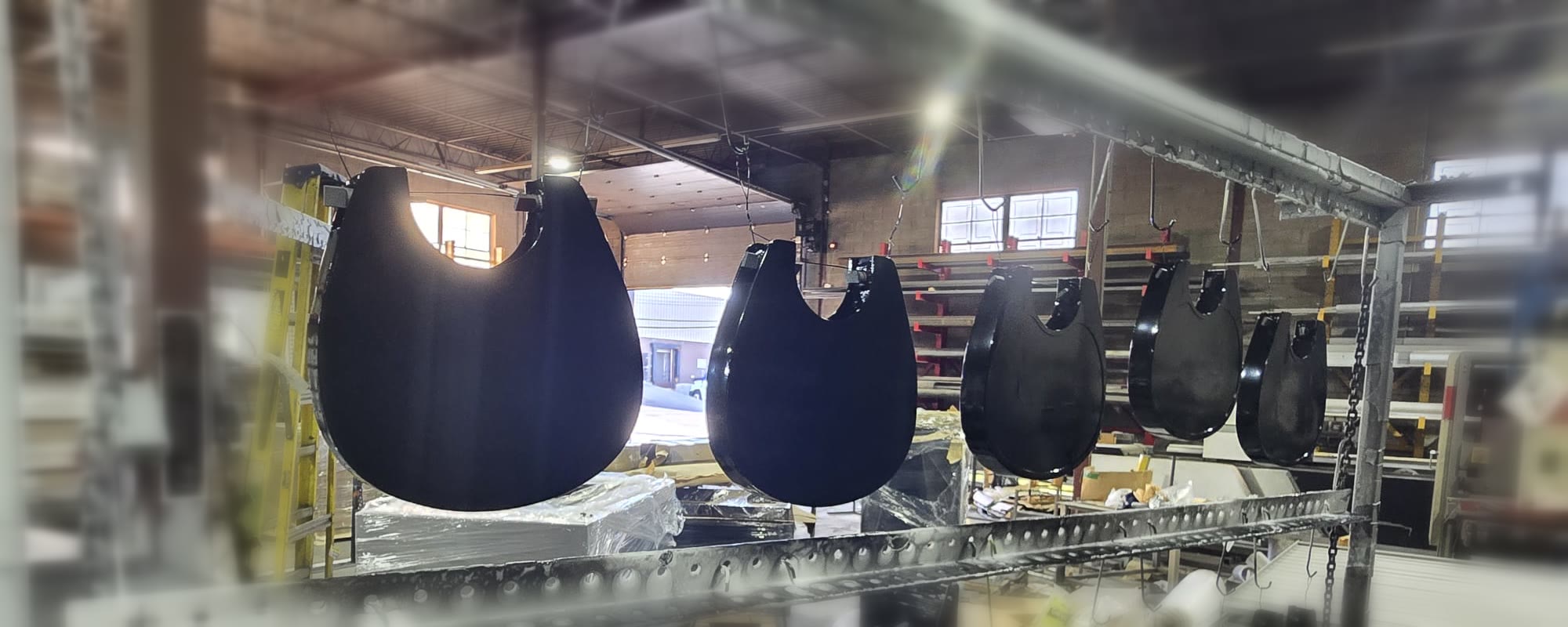

Black Klimbo K01 step shells hanging after powder coating — Black K01 step shells, fresh out of powder coating

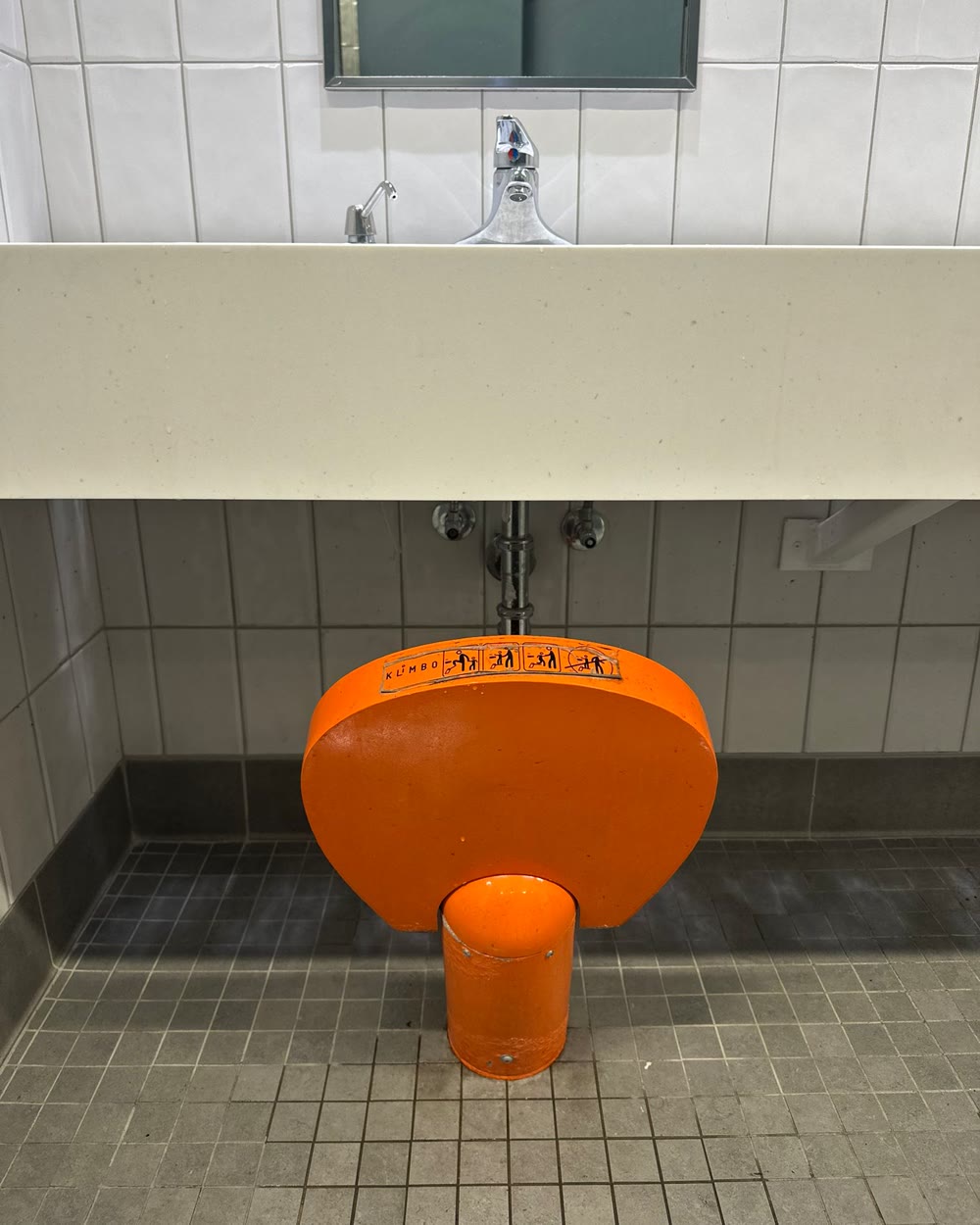

Orange Klimbo K01 installed under a public restroom sink — Orange K01, installed under a public sink

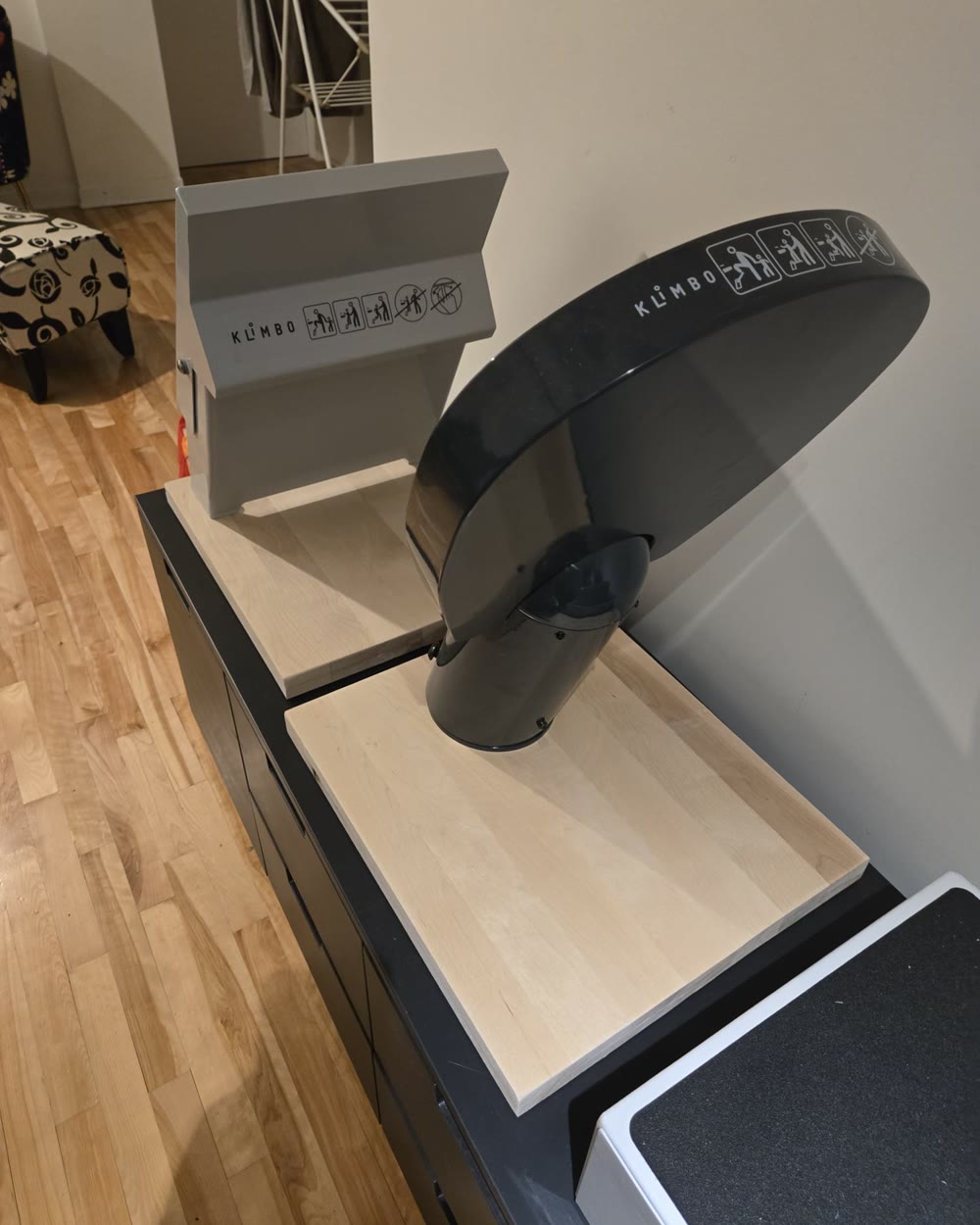

Black Klimbo K02 with a grey K02 behind it — Black K02, grey K02 behind

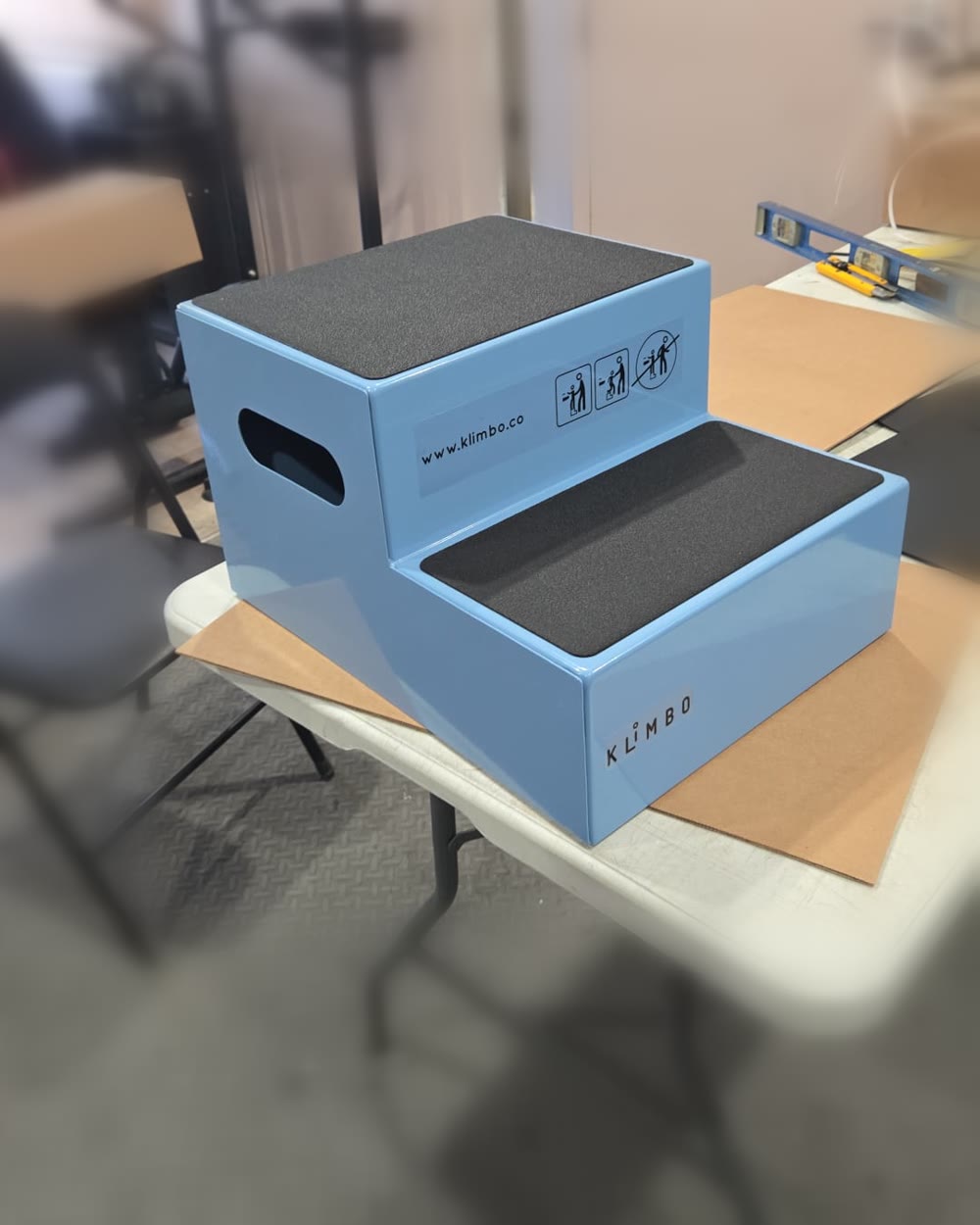

Light blue Klimbo K03 two-step unit — Light blue K03, the removable two step model

Questions we get from facilities teams

Straight answers.

Will it hold an adult?

Yes. Both models are rated by the manufacturer for 815 lb (370 kg). Adults of short stature use it too, which is part of the point.

Does it need power or a wall?

No. Klimbo is purely mechanical. It anchors to the concrete floor slab only. Nothing attaches to the wall, the counter, or the plumbing.

What happens when a child forgets to put it back?

Nothing to forget. The step retracts by itself as soon as their weight comes off it, on the K01 through an internal mechanism and on the K02 through a counterweight.

How is it cleaned?

Like the rest of the restroom. The finish is a polyester powder coat that stands up to standard restroom cleaners, and because the step retracts off the floor, the crew mops right under it.

Which model should we specify?

K01 where the restroom is a showcase or a wet, chlorinated environment, and where a five year warranty matters. K02 where you are equipping many restrooms and want the lowest cost per unit. Many operators mix both across a portfolio.

How do we buy?

Request a quote below with your site count and preferred model. Klimbo ships from Montréal, Canada, and works with distributors across North America. Volume pricing applies to multi restroom rollouts.

Request a quote

Tell us about your restrooms.

One form, one reply from a person. We will come back with pricing for the model you pick, the shipping estimate to your address, and the spec sheets your facilities team needs.

Pricing per unit and volume pricing for multiple sites
Spec sheets, installation guides, CAD and Revit files
Color and branding options

Email[email protected]

Phone+1 438 231 0178

Company

Klimbo Group Inc., Montréal, Canada. Designed and manufactured in Montréal.

Every child reaches the sink. Nobody trips over a stool.
